Get fiber-like speeds using the virtually noise-free 60 GHz band, installed in minutes.

Over 2 Gbps can be achieved and distances of up to 6 kms without trenching, permits, or licenses - all with quick and easy aiming using 3-D beamforming. Also, since most applications have asymmetrical bandwidth requirements, our designs maximize single-direction throughput. Compare the performance of the TNA-300 series to the competition and see for yourself.

15%

Tachyon Networks TNA-300 Series 2.3 Gbps

15%

Brand A 900 Mbps

15%

Brand B 900 Mbps

Single-direction max throughput

3-D beamforming makes installation easy

Tachyon continues to offer 100% beamforming clients (TNA-301 & TNA-302), which require little to no aiming and are ideal for short to medium distances. For longer distances, the limited beamforming capabilities and directional antenna options of the TNA-303X are the perfect choice.

Install links in minutes, instead of hours.

TNA-301+302 Quick Install 60GHz PTP+PTMP

The TNA-301+TNA-302 family of radios are industry-leading PTP and PTMP mmwave radios that operate in the worldwide unlicensed 60GHz band. Key features include beamforming, which eliminates time-consuming aiming; a 2.5Gbps ethernet port to enable full speeds of up to 2.3 Gbps; 32 clients per sector for dense deployments; and a solid range of up to 1km.

2.3 Gbps+

32 clients

1 km+

Full band

View Datasheets & Guides

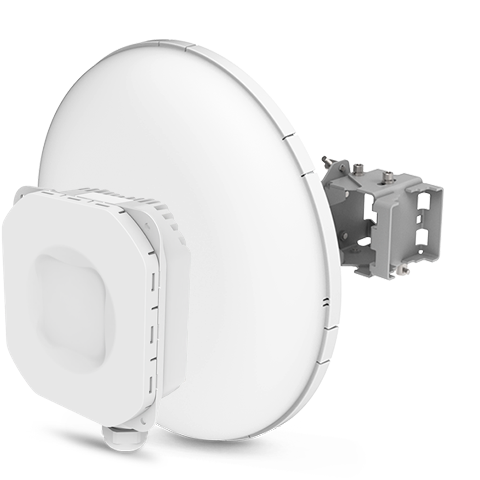

TNA-303X Modular 60GHz PTP+PTMP

What makes the TNA-303X model different from the rest of the TNA-300 series is the innovative modular design: the base unit features 90° of beam-forming coverage and can be paired with an antenna kit (sold separately) to convert the radio from a wide beam-steering device to a highly directional one. And of course it supports the full unlicensed 60GHz band and is compatible with all TNA models.

2.3 Gbps+

32 clients

6 km+

Full band

View Datasheets & Guides

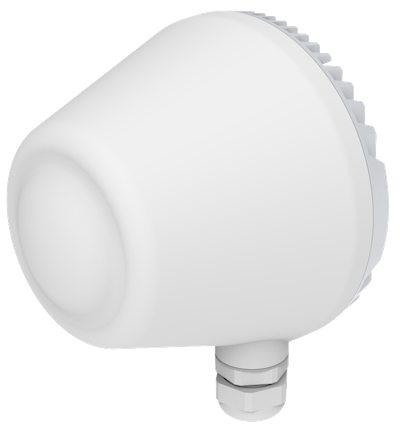

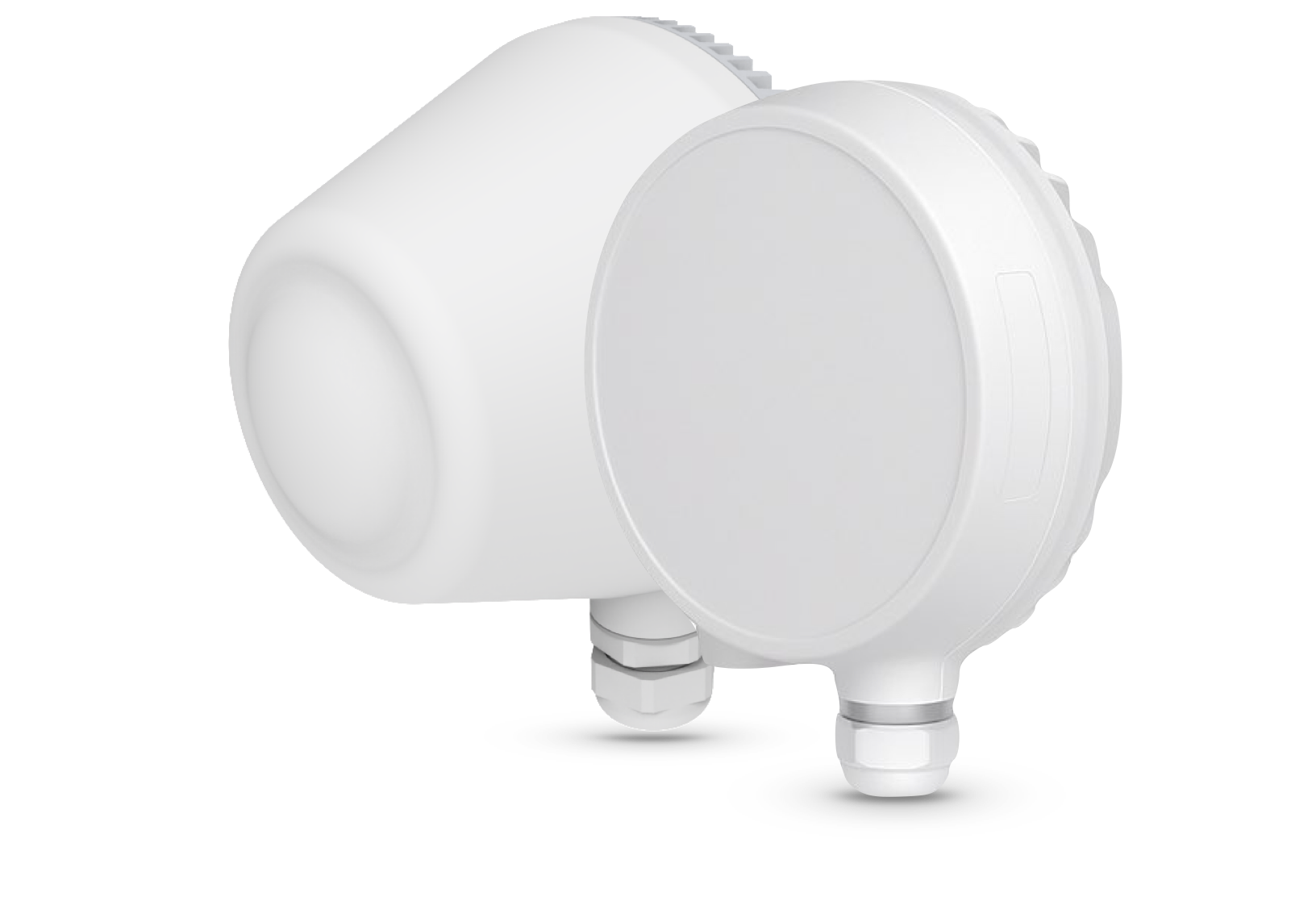

TNA-303L-65 Compact, Ultra Low-Cost 60GHz

The TNA-303L-65 is the latest addition to Tachyon’s 60GHz lineup, offering full support for the unlicensed 60GHz band and seamless compatibility with existing TNA models. It delivers speeds up to 1 Gbps in an ultra-compact, cost-efficient form - making it the most affordable option in its class. An optional Wi-Fi radio dongle is available to simplify installation and alignment.

1 Gbps

Mini-sized

3 km+

Full band

View Datasheets & Guides

Which TNA-300 series model is right for you?

All Tachyon TNA-300 series products support the full 60 GHz band (57-71 GHz), including channels 5 and 6, and can operate in station, access point, and PTP modes. The 1G port on the multi-port units can be configured as an "anyband" failover.

	TNA-301	TNA-302	TNA-303X base	TNA-303L-65
Default operating mode	Access Point	Station	Station	Station
Beamforming antenna	120° x 50°	40° x 40°	90° x 50°	8° x 8°
Antenna polarization	Vertical	Vertical	Vertical or Horizontal	Vertical or Horizontal
Antenna kit support?	No	No	Yes	No
EIRP	40 dBm 20 dBm tx power + 20 ant. gain	40 dBm 18 dBm tx power + 22 ant. gain	38 dBm 22 dBm tx power + 16 ant. gain	54 dBm
Interfaces	1 x 2.5G, 1 x 1G Anyband failover supported	1 x 2.5G, 1 x 1G Anyband failover supported	1 x 2.5G, 1 x 1G Anyband failover supported	1 x 1G, 1 x USB-A USB for WiFi mgmt radio

TNA-301

Default mode

Access Point

BF antenna

120° x 50°

Antenna polarization

Vertical

Antenna kit support?

No

EIRP

40 dBm
20 dBm power + 20 ant. gain

Interfaces

1 x 2.5G Eth & 1 x 1G Eth
Anyband failover supported

TNA-302

Default mode

Station

BF antenna

40° x 40°

Antenna polarization

Vertical

Antenna kit support?

No

EIRP

40 dBm
18 dBm power + 22 ant. gain

Interfaces

1 x 2.5G Eth & 1 x 1G Eth
Anyband failover supported

TNA-303L-65

Default mode

Station

BF antenna

8° x 8°

Antenna polarization

Vertical or Horizontal

Antenna kit support?

No

EIRP

54 dBm

Interfaces

1 x 1G Eth & 1 x USB-A
USB for WiFi mgmt radio

TNA-303X base unit

Default mode

Station

BF antenna

90° x 50°

Antenna polarization

Vertical or Horizontal

Antenna kit support?

Yes

EIRP

38 dBm
22 dBm power + 16 ant. gain

Interfaces

1 x 2.5G Eth & 1 x 1G Eth
Anyband failover supported

TNA-303X antenna kit options

Model		Beam steering	Antenna gain	Mounting bracket
	TNA-AK-100 100 mm antenna kit	6° x 6°	33 dBi	L-style bracket included
	TNA-AK-150 150 mm antenna kit	4° x 4°	37 dBi	Not included (TNA-M-P recommended)
	TNA-AK-300 300 mm antenna kit	2° x 2°	42 dBi	Not included (TNA-M-P recommended)
	TNA-AK-S-45 45° scanning antenna kit	45° x 5°	30 dBi	Not included (TNA-M-P recommended)
	TNA-AK-S-90 90° scanning antenna kit	90° x 5°	30 dBi	Not included (TNA-M-P recommended)

Rotate your screen or read about our antenna kits on the TNA-303X page of the support site.

Link Calculator

The link calculator can help you determine which models make sense for your installation and rain zone.

Open Link Calculator

The Tachyon link budget tools allow you to adjust parameters to estimate your link's expected RSSI and signal budget. For tips and additional information about this tool, please visit the usage guide on the support site.

Advantages

Wide-ranging use
Simple management
Easy aiming

With access to the entire 60 GHz band, Tachyon solutions enable longer-range wireless links by leveraging upper channels that experience lower oxygen absorption. The abundance of non-overlapping channels also supports co-location opportunities, ideal for high-density deployments.

Combined with a diverse device portfolio, Tachyon offers a powerful solution for ISPs deploying multi-gigabit fixed wireless access, video surveillance backhaul, campus WiFi, and other bandwidth-intensive applications.

Multi-gigabit PTMP Broadband

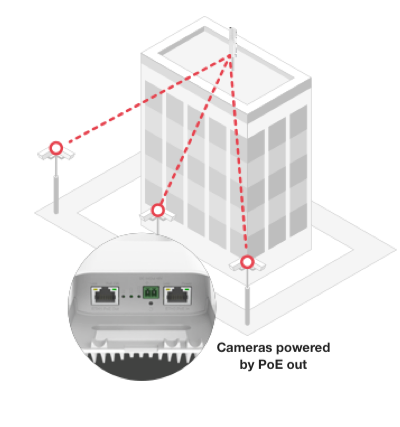

Video surveillance camera backhaul
Campus WiFi backhaul

Longer wireless links are possible with Tachyon products by selecting an upper channel in the 60 GHz band, due to the decreased attenuation from oxygen absorption.
The larger number of available non-overlapping channel options in the full 60 Ghz band provides additional opportunities for AP co-location at your installation sites.
The TNA-303X model allows you to extend your links even further when attaching our high-gain antenna kits.
The new TNA-303L is priced to allow you to extend your network without breaking the bank. XXXX TODO

3-D beamforming makes Tachyon TNA-301+302 series devices easy to aim, which means your installations are completed in less time and with less cost.
No need to worry about post-installation movements that might require additional time and truck rolls.
3-D beamforming is also ideal for covering taller buildings or reaching clients that are not located on the same plane, as well as dealing with terrain reflections.
Tachyon's beamforming antenna provides higher PSD and improved receive sensitivity.
The TNA-303X model also supports beamforming, and even has limited beamforming capabilities with certain antenna kits.

Tachyon's RESTful API enables your devices to be monitored and managed from your backend of choice via a custom integration. The API has functions to fetch stats, change configuration, and perform firmware upgrades.
A modern and responsive web interface is always available for configuration, and SNMPv2+v3 for monitoring and traps.
Management is available over IPv4 networks, and no other complicated external services or servers are required for setup.
Use Tachyon's Link Budget Calculator tool to see if the TNA-300 series family is right for your installation.

Coverage comparison

Tachyon's beamforming TNA-301 AP provides excellent range to the beamforming TNA-302 clients. Other solutions can only reach a fraction of the distance and require a highly directional client to achieve the same distances.

Tachyon NetworksOther Solutions

1 AP $237 km²

Best overall affordability

Lower your overall infrastructure costs by deploying Tachyon Networks in your infrastructure build-out.

Tachyon TNA-301+302	1 AP	$240 / km²
Brand A + directional STA	3 APs	$390 / km²
Brand B + directional STA	1 AP	$1.1k / km²
Brand A + beamforming STA	48 APs	$6.2k / km²
Brand B + beamforming STA	10 APs	$13.4k / km²
